  • New item   T-22 TRUSS Conical joint (screwed 2)

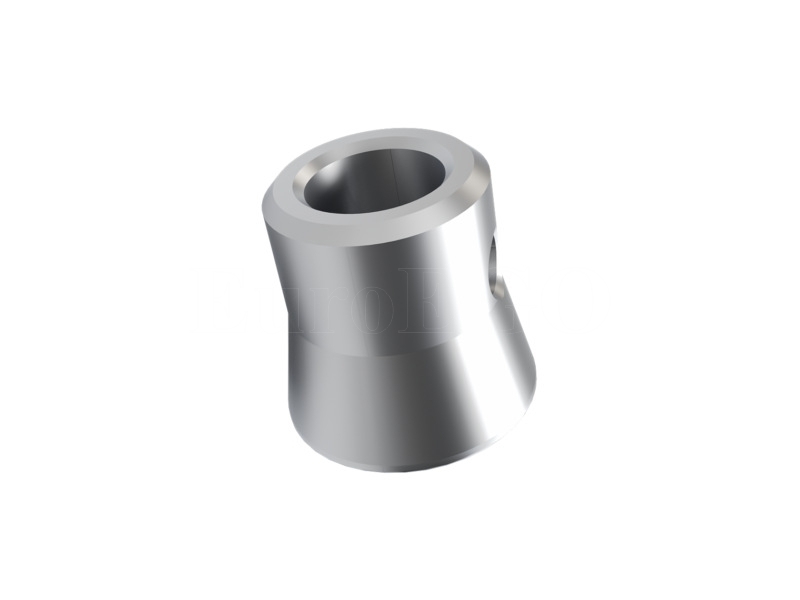

    T-22 TRUSS Conical joint (screwed 2)

    Code: AS-SZ05.11
    Inquire about this item
    Price 11 € VAT excl.

    Externally screwed connecting cone TRUSS for 22 cm structures

    Quantity
    1 pcs.
    Country of manufacture
    POLAND
    Module
    T-22
    Pipe
    35 x 1,5 mm
    Type
    Connection
    Material
    Aluminum
    Color
    Grey
    Height
    3,2 cm
    Width
    4,4 cm
    Depth
    3,2 cm
    Weight
    0,08 Kg
    Warranty
    1 year

  • Externally screwed cone connector for TRUSS T-22 structures with external tubes 35 x 1.5 mm. Made of high quality aluminum. The diameter of the connecting end (recessed part) is 31.8 mm, which makes it ideal for fitting into the 32 mm internal tube cavity. The diameter of the hole for the dowel tapers from 8 mm to 10 mm. The connector has a centering protrusion that fits into the connecting cone or base and helps to accurately align the connector when screwing it in.







    • Main tube: 35 x 1.5 mm
    • Total length: 44 mm
    • Minimum diameter: 27.8 mm
    • Maximum diameter: 31.8 mm
    • Hole diameter: 8-10 mm
    • Weight: 78 g
    • Material: Aluminum EN AW-6060 T6





    Manufacturer / Importer: Poland




    This set includes:

    • Conical connector - 1 pc.
