    T-22 TRUSS Conical joint (screwed)

    Code: AS-SZ05.04
    Inquire about this item
    Price 11 € VAT excl.

    TRUSS 22 cm screw-in connecting cone for structures

    Quantity
    1 pcs.
    Country of manufacture
    POLAND
    Module
    T-22
    Pipe
    35 x 1,5 mm
    Type
    Connection
    Material
    Aluminum
    Color
    Grey
    Height
    3,2 cm
    Width
    4,4 cm
    Depth
    3,2 cm
    Weight
    0,04 Kg
    Warranty
    1 year

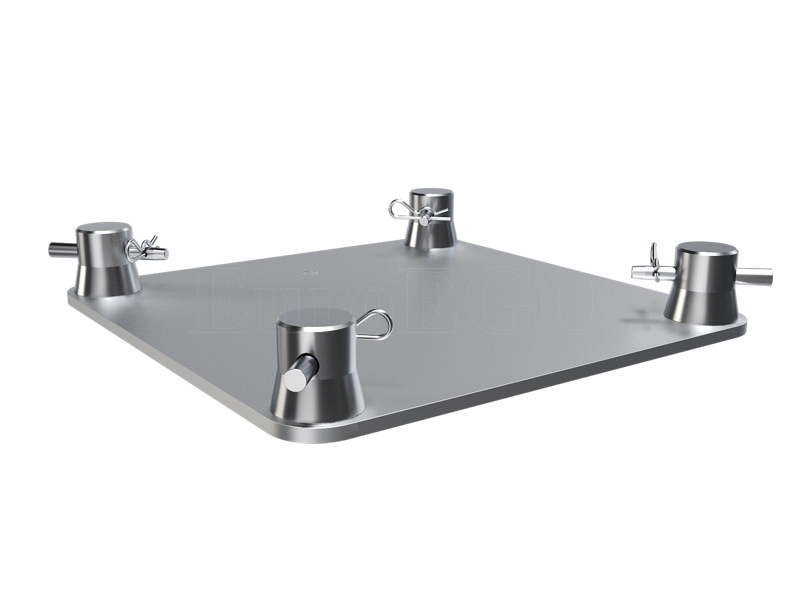

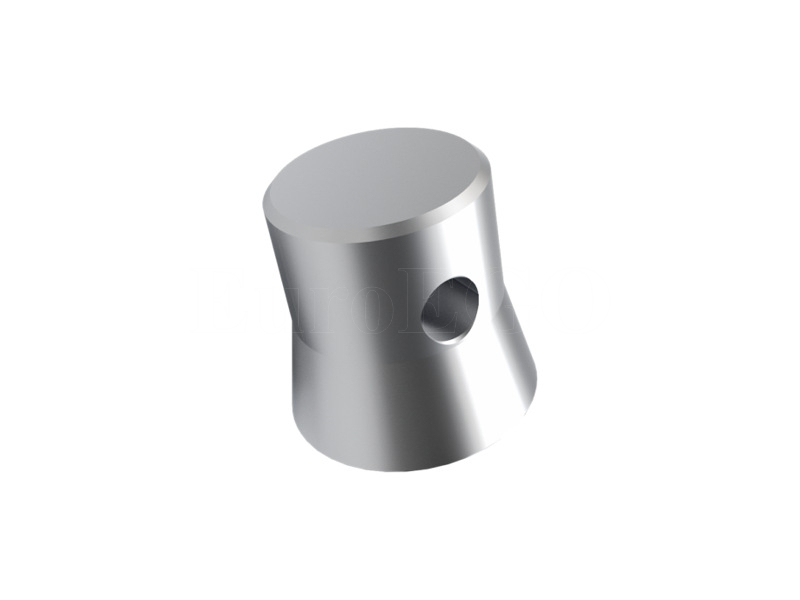

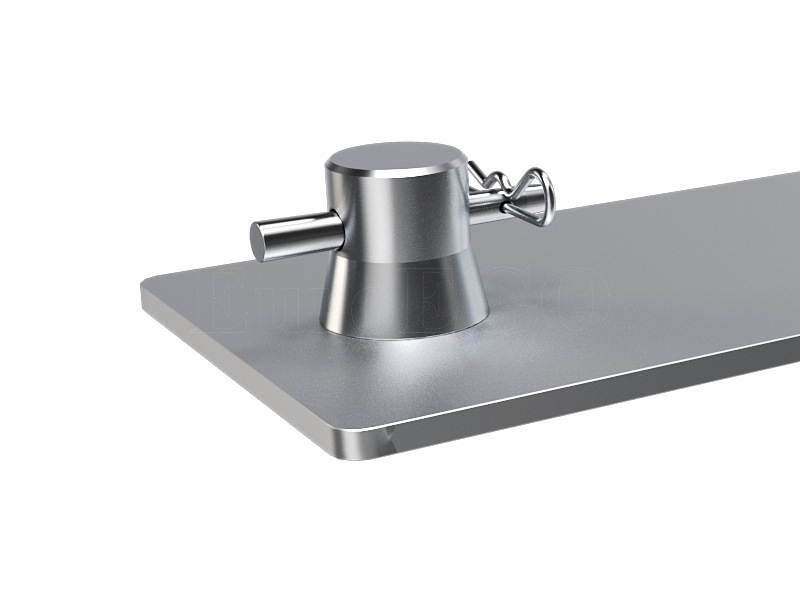

  • T-22 conical connector screwed to the hub or base, designed for TRUSS structures with external tubes of 35 x 1.5 mm. Made of high-quality aluminum, characterized by excellent mechanical resistance to tensile stress. The diameter of the connecting end (recessed part) is 31.8 mm, which makes it ideally located in the 32 mm internal tube cavity. The diameter of the hole for the pin tapers from 8 mm to 10 mm. The connector has a centering protrusion that fits into the connecting hub or base and helps to accurately direct the connector when screwing it in.







    • Main tube: 35 x 1.5 mm
    • Total length: 44 mm
    • Minimum diameter: 27.8 mm
    • Maximum diameter: 31.8 mm
    • Hole diameter: 8-10 mm
    • Weight: 36 g
    • Material: Aluminum EN AW-6060 T6





    Manufacturer / Importer: Poland




    This set includes:

    • Conical connector - 1 pc.
